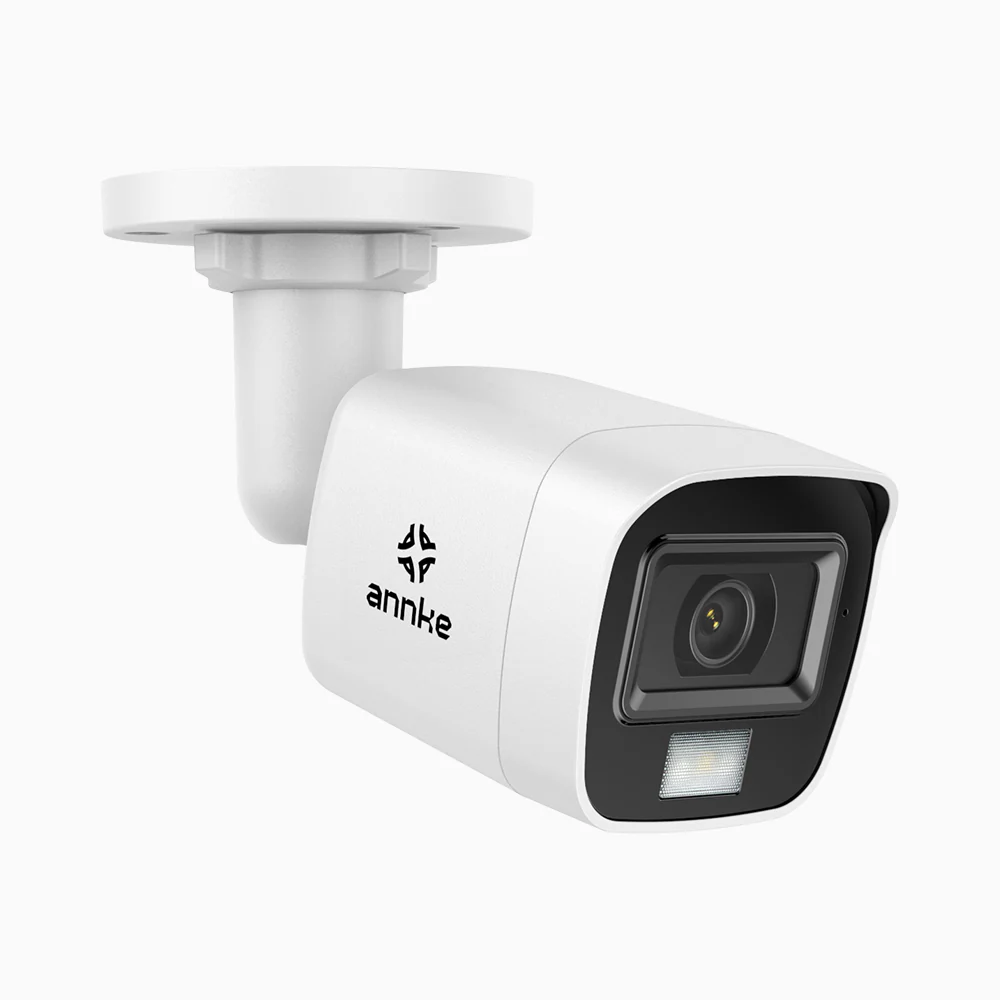

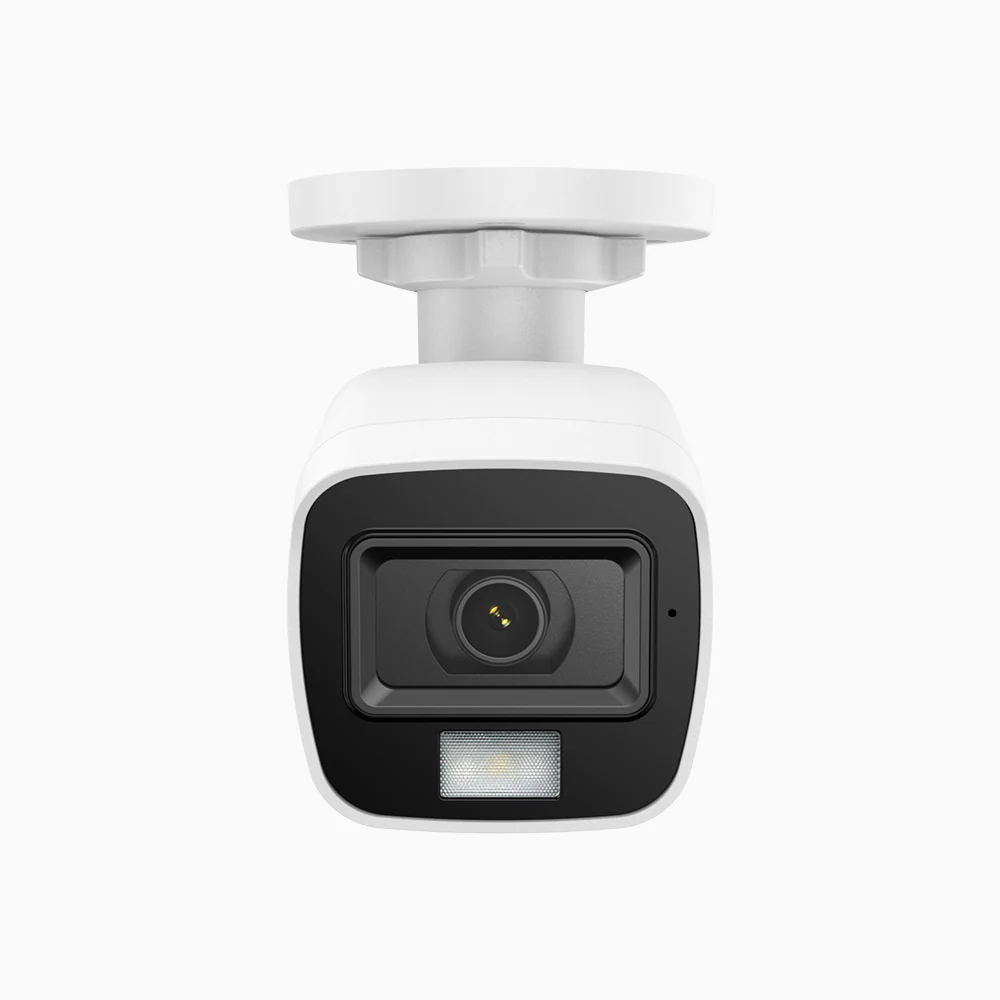

CS1EQ - 4K Dual Light Wired CCTV Security Camera, Color & IR Night Vision, 3840x2160@20fps, f/1.6 Super Aperture, 4-in-1 Output Signal, IP67
€43.00
Image sensor4K CMOS Image sensor | Video Resolution3840 (H) × 2160 (V) |
Signal SystemPAL/NTSC | Lens2.8mm |
Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR | Angle of View2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127° |
Frame RateTVI: 8MP @12.5 fps, 8MP @15 fps, 4MP @25 fps, 4MP @30fps, 2MP @25 fps, 2MP @30 fps | Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night. |
Supplement Light typeWhite Light,IR | Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m |
Wide Dynamic RangeDigital WDR | Audio/ |
IR Cut FilterYes | Video OutputBNC, switchable TVI/AHD/CVI/CVBS |
CS1EQ General
HousingPlastic | ColorWhite |
Operating PowerDC12V | Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C |
Indoor/OutdoorIndoor/Outdoor | Weatherproof RatingIP67 |
Dimension (L x W x H)138.8 mm × Ø70 mm (5.46" × Ø2.76") | WeightApprox. 160 g (0.35 lb.) |
CS1ES Camera
Image sensor4K CMOS Image sensor | Video Resolution3840 (H) × 2160 (V) |
Signal SystemPAL/NTSC | Lens2.8mm |
Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR | Angle of View2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127° |
Frame RateTVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps | Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night. |
Supplement Light typeWhite Light & IR | Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m |
Wide Dynamic RangeDigital WDR | Audio/ |
IR Cut FilterYes | Video OutputBNC, switchable TVI/AHD/CVI/CVBS |
CS1ES General
HousingPlastic & Metal | ColorWhite |
Operating PowerDC12V | Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C |
Indoor/OutdoorIndoor/Outdoor | Weatherproof RatingIP67 |
Dimension (L x W x H)84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35") | WeightApprox. 230 g (0.51 lb.) |
